FEATURES:

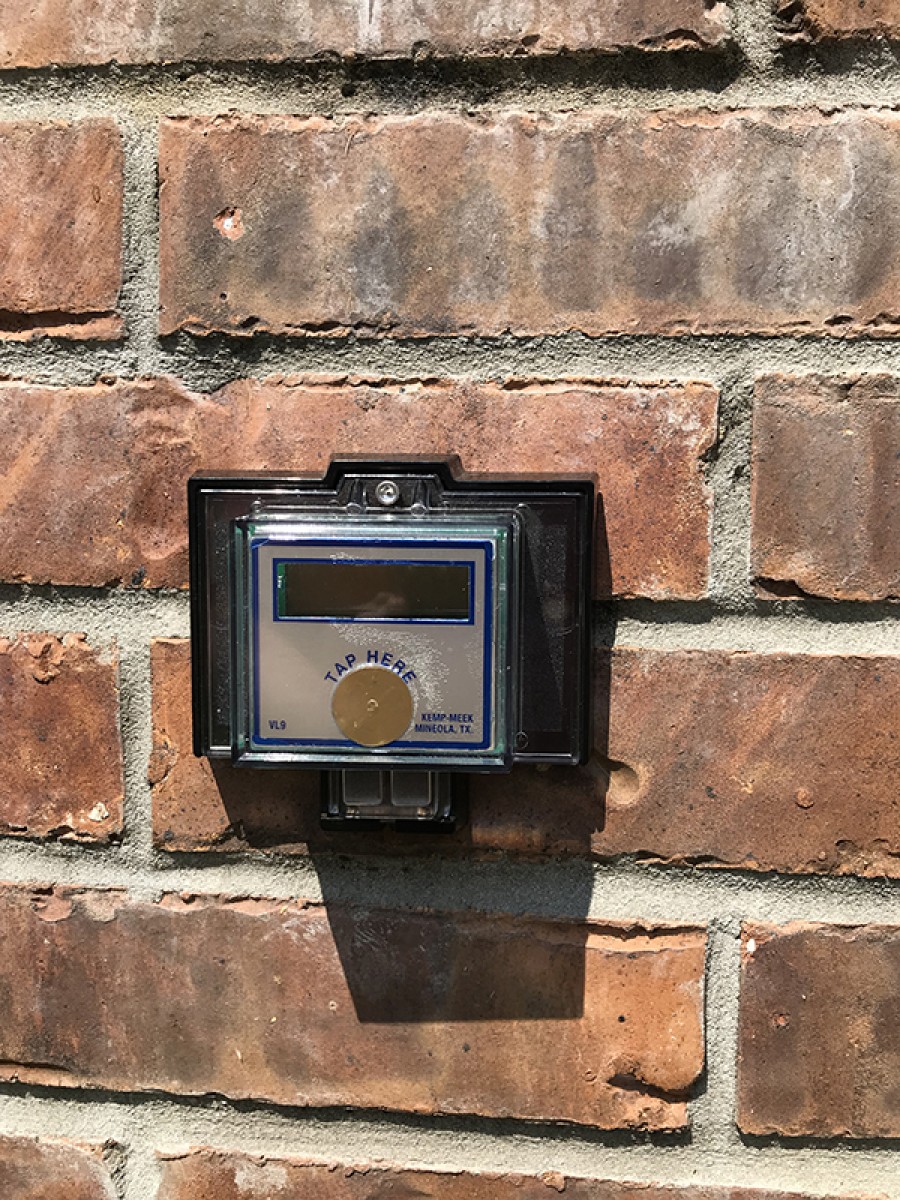

- Allows a meter to be read remotely from a convenient location
- Connects to switch or electronic pulse outputs on meter register
- Environmentally sealed
- Large easy-to-read display
- “TAP” to get current meter reading
- Up to 14 digits with optional decimal point
- 5 year limited warranty
- Distances to 2000 feet or more
- May be used in default mode of 6-digit reading starting at 000000 without programming
- May be reset to a reading of 000000 without going through full programming
- May be programmed to match number of digits and current reading on meter
- Accepts 1, 2, or 10 pulses per reading count increment.
PHYSICALS:
- 4.6" x 4.3" x 2" thick (11.7cm x 10.9cm x 5.1cm thick)
- Operating Temperature: -30°C to 80°C (-22°F to 176°F)
- Weight: 9oz (254g)
METER CONNECTIVITY:
Most meters having a mechanical switch closure or open-drain / open collector low-pulsing output, one switch closure or low pulse per increment of the meter reading.
